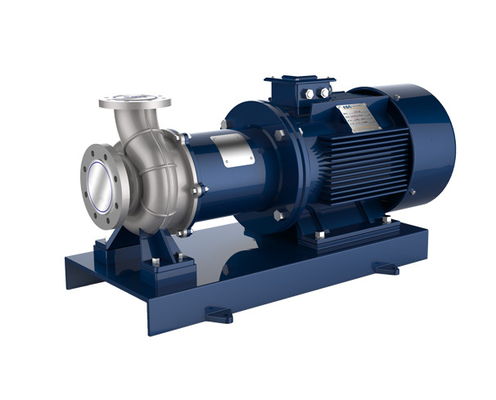

Automotive industry high efficiency CQB65-40-200 stainless steel magnet coupling pump for industry chemical magnetic transmission pump with high quality

1.0 Sets
MOQ
Automotive industry high efficiency CQB65-40-200 stainless steel magnet coupling pump for industry chemical magnetic transmission pump with high quality
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: 1 year
Customized support: OEM, ODM, OBM
Model Number: CQB65-40-200
Application: Automotive Industry, Biofuel Industry, Developing World Water Solutions, District Energy, Drinking water treatment, HVAC OEM, Industrial Boilers, Industrial Utilities, Machining, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry,
Horsepower: 20.5hp
Power Source: Electric, Electric
Pressure: 50bar
Structure: Single-stage Pump, Single-stage Pump
Cable Length: 3m
Outlet Size: 40mm
Voltage: 380/400/440V, 380V/400V/440V
Power: 15KW
motor: WNM
Theory: Electric magnetic Pump
Working temperature: -20~90℃
Type: Magnetic Pump
기본 정보
Model Number: CQB65-40-200
결제 및 배송 조건
Packaging Details: Plywood case for safety sea shipping
Supply Ability: 5000 Set/Sets per Month
제품 설명
Product Description

1.1 Magnetic drive centrifugal pump(magnetic pump for short)is generally consisted of motor, magnetic coupling and anticorrosive centrifugal pump. It is mainly to feature drive transferred by coupling and completely leak tightness. When motor drives theexternal magnet steel of magnetic coupling to rotate,the magnetic force line passes through the clearance and spacer sleeve to act on the internal magnet steel,making the rotor and motor rotating synchronously,thus to transfer the torque with out any mechanical contact. At the end of dynamic input of pump shaft,as liquid has been enclosed in the stationary spacer sleeve without dynamic seal,thus to actualize complete leak tightness.

1.2 CQB series magnetic pumps are late model fully leak tight anticorrosive pumps developed by National Design Group for Magnetic Pumps,with their technical and economical criteria in parallel with the level of their counter parts abroad at the end of 1980's. The type and basic parameters of CQB series magnetic pumps apply the standard of JB/T7742-95 Mini type Magnetic Drive Centrifugal Pump,and are in accordance with the enterprise standard of Q/BTB01-2006 Magnetic Drive Centrifugal Pump.
1.3 CQB series magnetic pumps are used in the industries of petroleum, chemical, pharmaceutical, electroplating, environmental protection, food stuff, photographing,water treatment and national defense etc.to deliver inflammable, explosive, volatile, toxic rare and various corrosive liquid,suitable for liquid not containing solid particles,fibre and magnetic materials,suction pressure not greater than 0.2Mpa, maximum working pressure up to 1.6Mpa,temperature not exceeding 100℃,density not over 1600kg/m', viscidity lower than3*10-6 M/S.
Details Images
Specification
item
value
Warranty
1 year
Customized support
OEM, ODM, OBM
Brand Name
PIONEER
Model Number
CQB65-40-200
Place of Origin
Jiangsu,China
Application
Automotive Industry, Biofuel Industry, Developing World Water Solutions, District Energy, Drinking water treatment, HVAC OEM, Industrial Boilers, Industrial Utilities, Machining, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Raw Water Intake, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
Power Source
Electric
Structure
Single-stage Pump
Outlet Size
40mm
Voltage
380/400/440V
motor
WNM
Theory
Electric magnetic Pump
Working temperature
-20~90℃
Power Source
Electric
Type
Magnetic Pump
Structure
Single-stage Pump
Voltage
380V/400V/440V
Certifications
Packing & Delivery
Plywood case for safety sea shipping
Company Profile
Has been more than 30 years since set up, Luoyang Pioneer Anti corrosion Equipment Co.,Ltd. ls a top leader in manufacturing anti corrosion equipment,pipes and valves inland.Located in the high-developing area of Luoyang Economic Development zone,the company occupies area more than 32800m³.With modern workshops and facilities, perfect quality control system and advanced inspect method, and well-educated staffsthat can undertake a full set of anti corrosion equipment of research and development,production and Installment.

Recent years,We have imported advanced foreign technology and high-tech material,Continuous technological innovation,we have successfully supplied high quality products and services for the major Engineering project of nation,such as steel cold roll Acid-wash,acid purification，chemical-industry ionicmembrance caustic soda, phosphor fertlizer; environmental protection sewage treatment and so on,which not only substitute the import, settle the exact for these engineerings,but also saved great foreign exchange, that gain considerable economic and social benefit.The main products of the company can be divided into two types:
1.Full plastic type: PTFE, PVDF,PPH, RPP, PE80，PE100, UHMWPE,UPVC and CPVC full plastic valve,pipe fitting，strainer，board material, filing ring and equipments(Tanks,Purifying Tower，Ventilator)series.
2.Steel lining type: PTFE,PVDF，FEP, PEA, PPH,RPP, PO,PE,UHMWPE lining, PU valve， pipe， pipe fitting,equipment，PTFE ripple compensator, and tube，widely used, in the fields of steel,metallurgy,petroleum,chemical industry, fertilizer，dye,pharmacy，electric power，environmental protection sewage treatment,mining industry. Has the advantages of structure innovation，unique craft work，wide temperature adaption,long service life and high benefit,the products is the ideal Anti corrosion engineering material that well favored by the customers and developed its unique outlet in market.

Customer as fundamental, to win the market with credit. Through many years, on the base of strengthening enterprise management. All products in Pioneer have passed the national security (TS) and national industrial product production license certification, the certification of IS09001: 2015 International quality system certification. IS014001 : 2015 Environment management system certification. Continually improve the quality of products and service, was named the titles as "Luoyang city pump valve industrial association vice chairman unit", "National level Spark enterprises","State Torch Program Enterprises", "AA+ degree credit enterprise", "keep the contact and credit "advanced unit, "City level technology center enterprise "，"high-tech enterprise", "key enterprise in Luoyang".
FAQ
1. who are we?
We are based in Henan, China, start from 2019,sell to Domestic Market(20.00%),Southeast Asia(20.00%),Eastern Asia(10.00%),Mid East(10.00%),South America(10.00%),Northern Europe(10.00%),Africa(5.00%),South Asia(5.00%),North America(5.00%),Central America(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
centrifugal pump,industrial valve,PTFE lined pipe,chemical pump,Plastic pipe

4. why should you buy from us not from other suppliers?
Luoyang Pioneer Anticorrosion is specialized in the manufacturing of international quality anti corrosion pumps,valves,pipes and fittings. The products are widely used for scrubbing, steel pickling, electroplating, paints, dye stuffs, chlor alkali,

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
