홈 /제품 소개/공업 용수 펌프/WATERPRO WQD 220V Electric Family Homes Sewage Submersible Drainage 180w With Float Switch Mini Water Pump

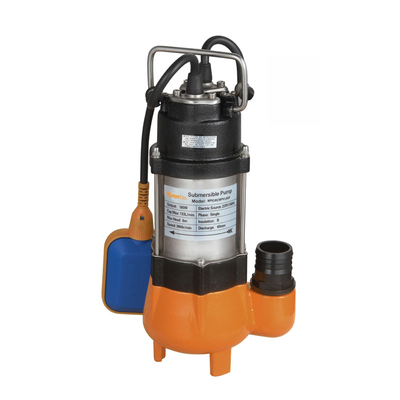

WATERPRO WQD 220V Electric Family Homes Sewage Submersible Drainage 180w With Float Switch Mini Water Pump

500.0 Cartons
MOQ
$43.50(>=500 Cartons)
가격
WATERPRO WQD 220V Electric Family Homes Sewage Submersible Drainage 180w With Float Switch Mini Water Pump
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Warranty: 1-2 years
Customized support: OEM, ODM, OBM
Model Number: WPV-180F
Application: Family Homes, Irrigation and Agriculture, Raw Water Intake, wastewater treatment, Water Distribution, Water Treatment Solutions
Horsepower: 0.24HP
Power Source: Electric
Pressure: Low Pressure
Structure: Single-stage Pump
Cable Length: 5.3m
Outlet Size: 1 inch (25 mm)
Voltage: 220v
Power: 180w
Material: Cast Iron
cutter/blades: without
Usage: sewage water
Frequency: 50Hz
인증: RoHS, ce, CB, IECEE, pcoc, scoc, Coc, GS
기본 정보
인증: RoHS, ce, CB, IECEE, pcoc, scoc, Coc, GS
Model Number: WPV-180F
결제 및 배송 조건
Packaging Details: Watepro kraft box
제품 설명
APPLICATIONS FIELD
Suitable for use in applications such as domestic, irrigation and emptying tanks. MOTOR Two-pole induction motor(n=2850 r.p.m)
lnsulation Class B Protection lP68 Continuous service S1 Thermal protector Single-phase 220V/50Hz, 6OHz if request
Product Specification
Packing & Shipping
MODEL
WPV180F
MOQ
200pcs
Voltage
220V
Brand
WaterPro (support OEM)
Power
180W
Certificate
CE, RoHs, Gs
Frequency
50Hz
Packing
Carton
Max. Flow
133l/min
Warranty
12 months
Max. Head
6m
Place of Origin
China
Inlet/Outlet
25mm/32mm/40mm
Delivery term
30-40days in depent
Cable
5m
Loading port
Ningbo
Weight
9Kgs
LxWxH
180*190*400(mm)
OTHER MODELS
MODEL
Power
Voltage
Inlet/Outlet
Max. Head
Max. Flow
Weight
LxWxH
(W)
(V)
(mm)
(m)
(l/min)
(Kgs)
(mm)
WPV180F
180
220/380
25/32/40
6
133
9
180*190*400
WPV250F
250
220/380
25/32/40
7.5
150
9.8
180*190*400
WPV370F
370
220/380
40
9
160
13
180*190*430
WPV450F
450
220/380
50
9
260
17
255*195*485
WPV550F
550
220/380
50
10
280
18
255*195*485
"F" means pump with float switch
